EvapoBean™ Low-Temperature Recirculating Chiller
The EvapoBean™ CP-C5/20 II Low-Temperature Recirculating Chiller is a compact, next-generation cooling platform designed for precise and reliable temperature control in laboratory and small-scale process applications. Combining compressor-based refrigeration, intelligent control, and an integrated circulation pump, it delivers stable low-temperature performance and fast temperature response for continuous operation with laboratory instruments such as rotary evaporators, reactors, and condensers.
• High-Performance Refrigeration System: Compressor-based cooling with intelligent control ensures consistent temperature stability and fast response.
• Powerful Circulation Pump: Steady flow rate up to 16 L/min with sufficient pressure for connection to external laboratory equipment.

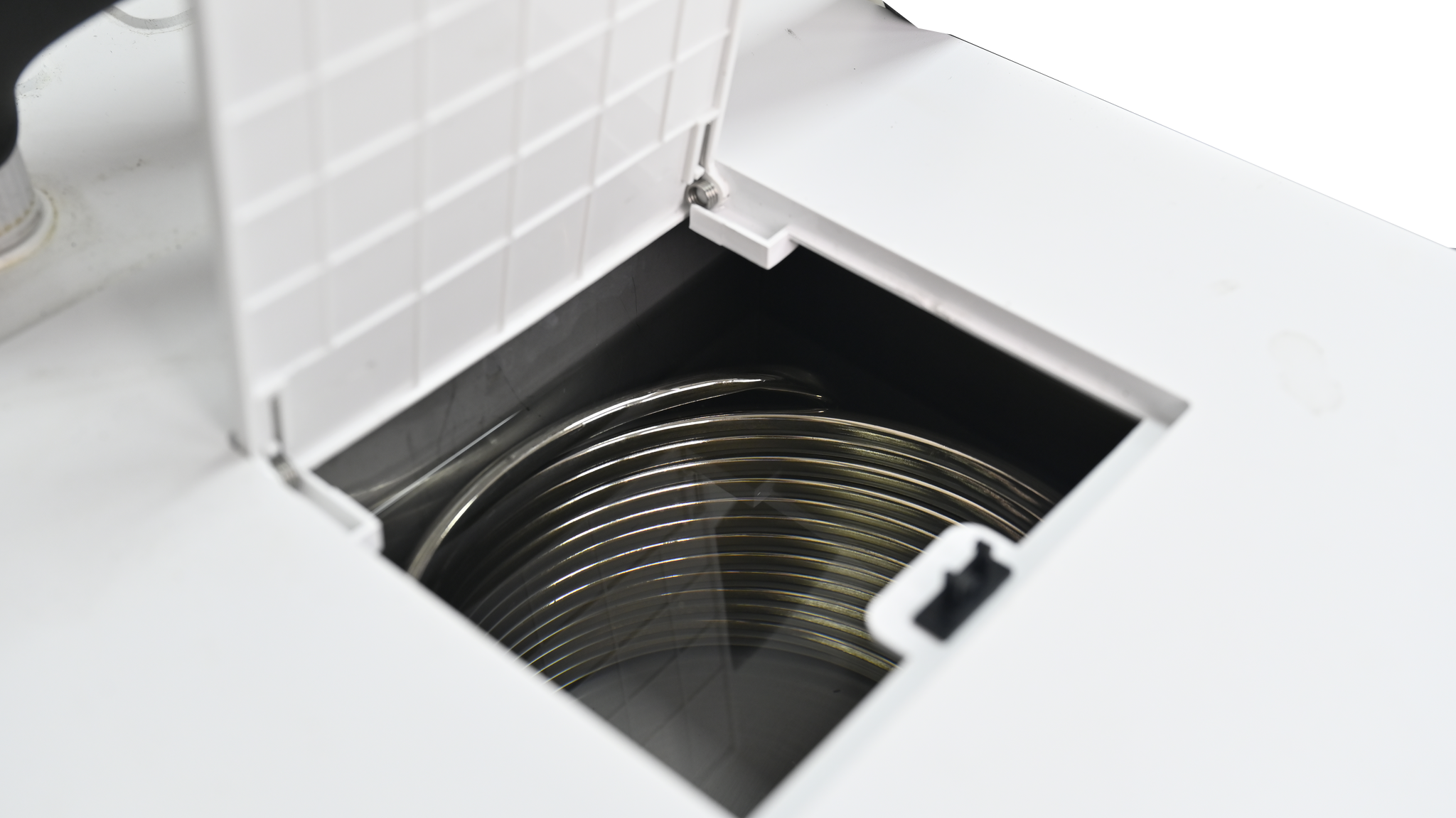

• Corrosion-Resistant Stainless-Steel Reservoir: 304 stainless-steel tank with up to 5 L capacity for long service life and fluid purity.
• IPS Knob-Type Display Interface: 1.28-inch IPS color screen with rotary knob for clear visualization and intuitive temperature adjustment.
• Eco-Friendly Refrigerant: Uses environmentally friendly R290 refrigerant with low global warming impact.
• Compact and Quiet Design: Space-saving footprint and low noise level for continuous laboratory operation.
| Characteristics | Specifications |
|---|---|
| GENERAL DATA | |
| Part Number | CP-C5/20 Ⅱ |
| Description | The volume of the liquid storage tank is ≤5 liters. The minimum temperature under no-load conditions is -20℃. |
| Cooling Method | Air cooling |
| External Loop Interface | Ø10 mm barbed fitting |
| Noise Level | ≤ 55 dB |
| Operating Temperature Range | From -20°C to room temperature |
| Power | 320 W |
| Power Supply |
220 V, 50 Hz |
| Reservoir Material & Capacity | Stainless steel 304, < ≤ 5L |
| Dimensions (L x W x H) | 446 x 270 x 490 mm |
| Weight | 23 kg (~51 lbs) |
| TEMPERATURE CONTROL | |
| Display Mode | 1.28-inch IPS Circular Knob Screen |
| Temperature Sensor | Pt100 |
| REFRIGERATION UNIT | |
| Refrigerant | Environmentally friendly R290 |
|
Cooling Capacity - At 7.2°C - At 0°C - At -20°C |
1,097 W / ~3,744 BTU/h 858 W / ~2,928 BTU/h 489 W / ~1,668 BTU/h |
| CIRCULATION PUMP | |
| Flow Rate | 16 L/min |
| Lift |
Up to 16 m |
