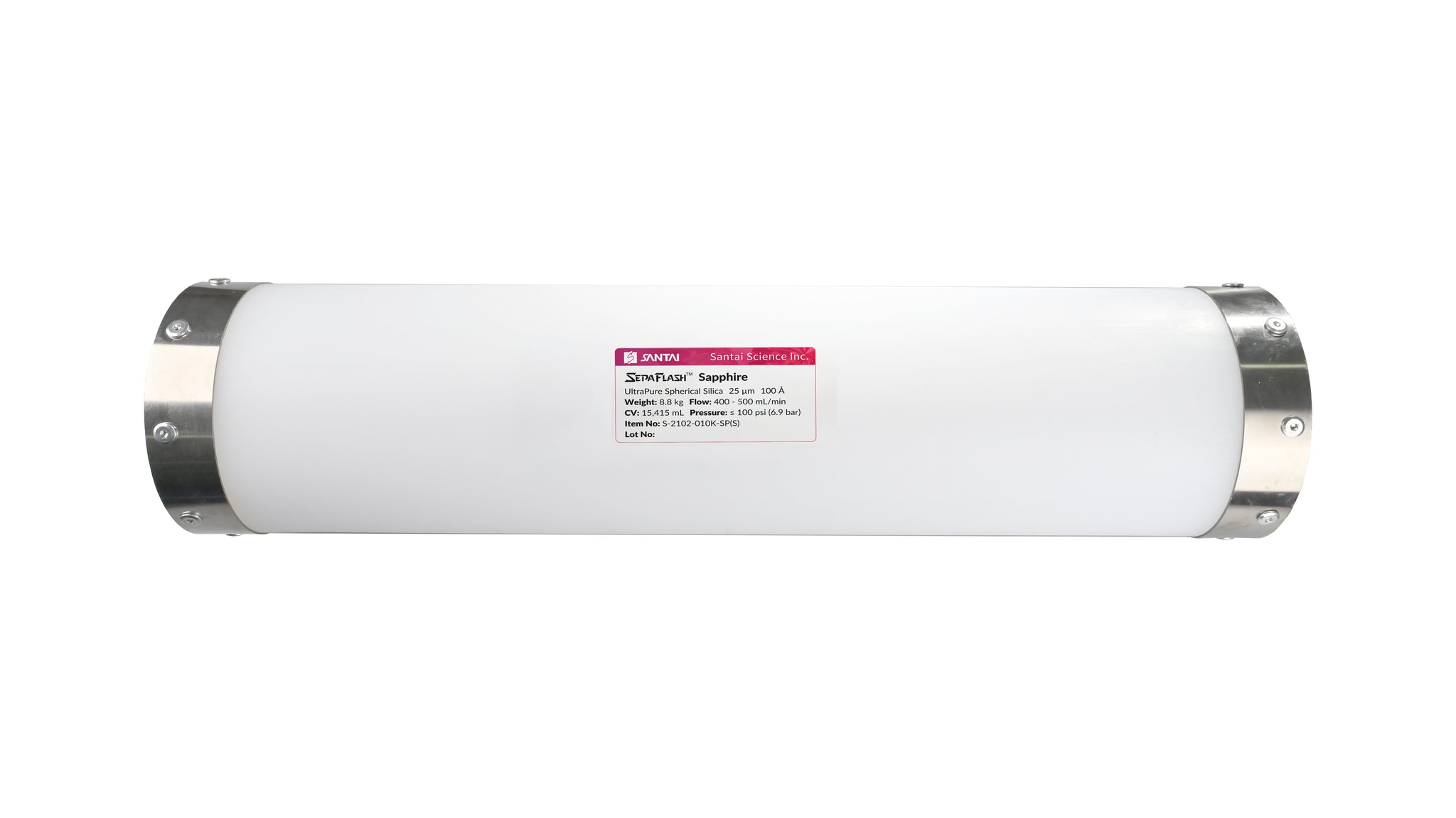

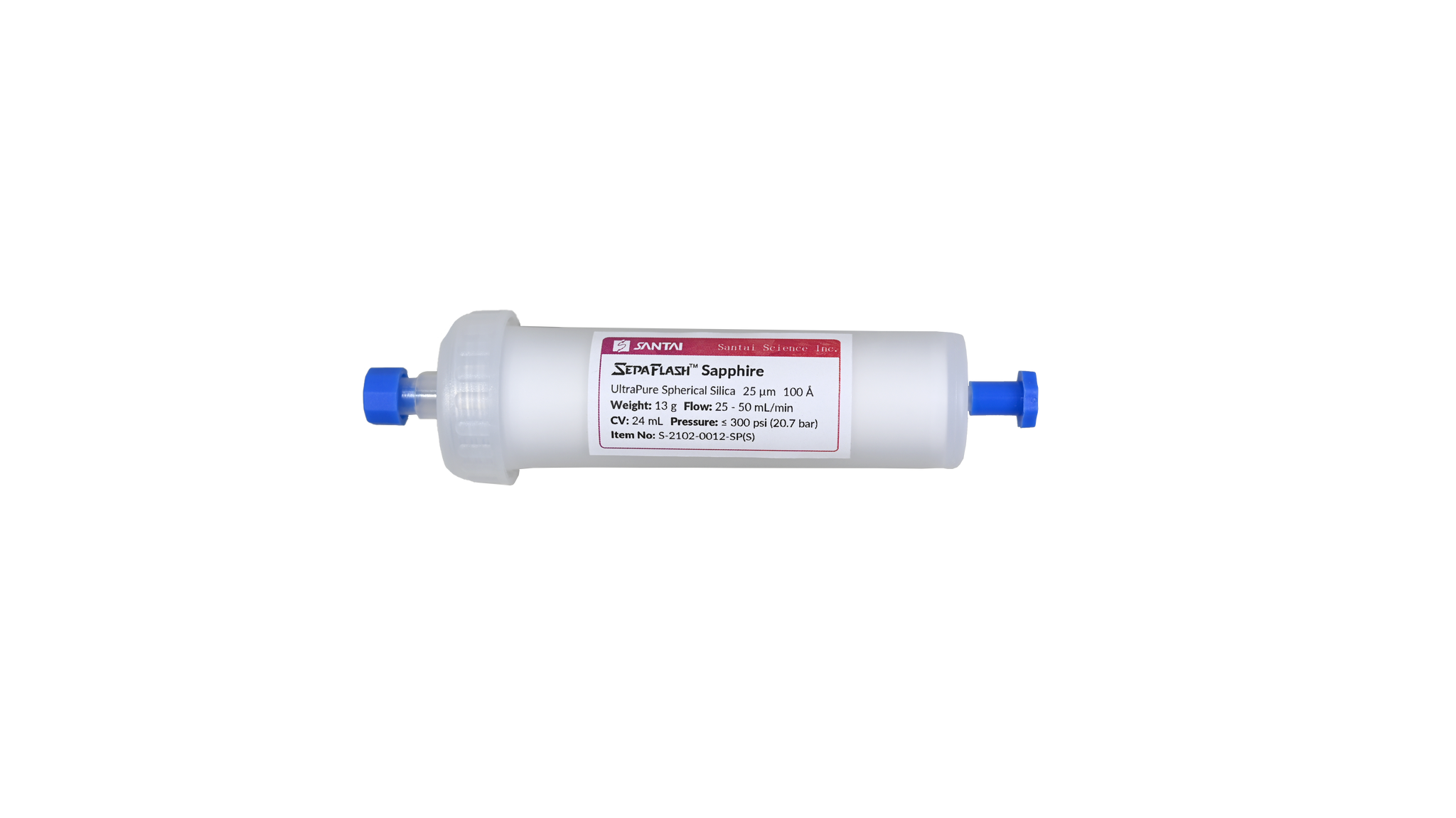

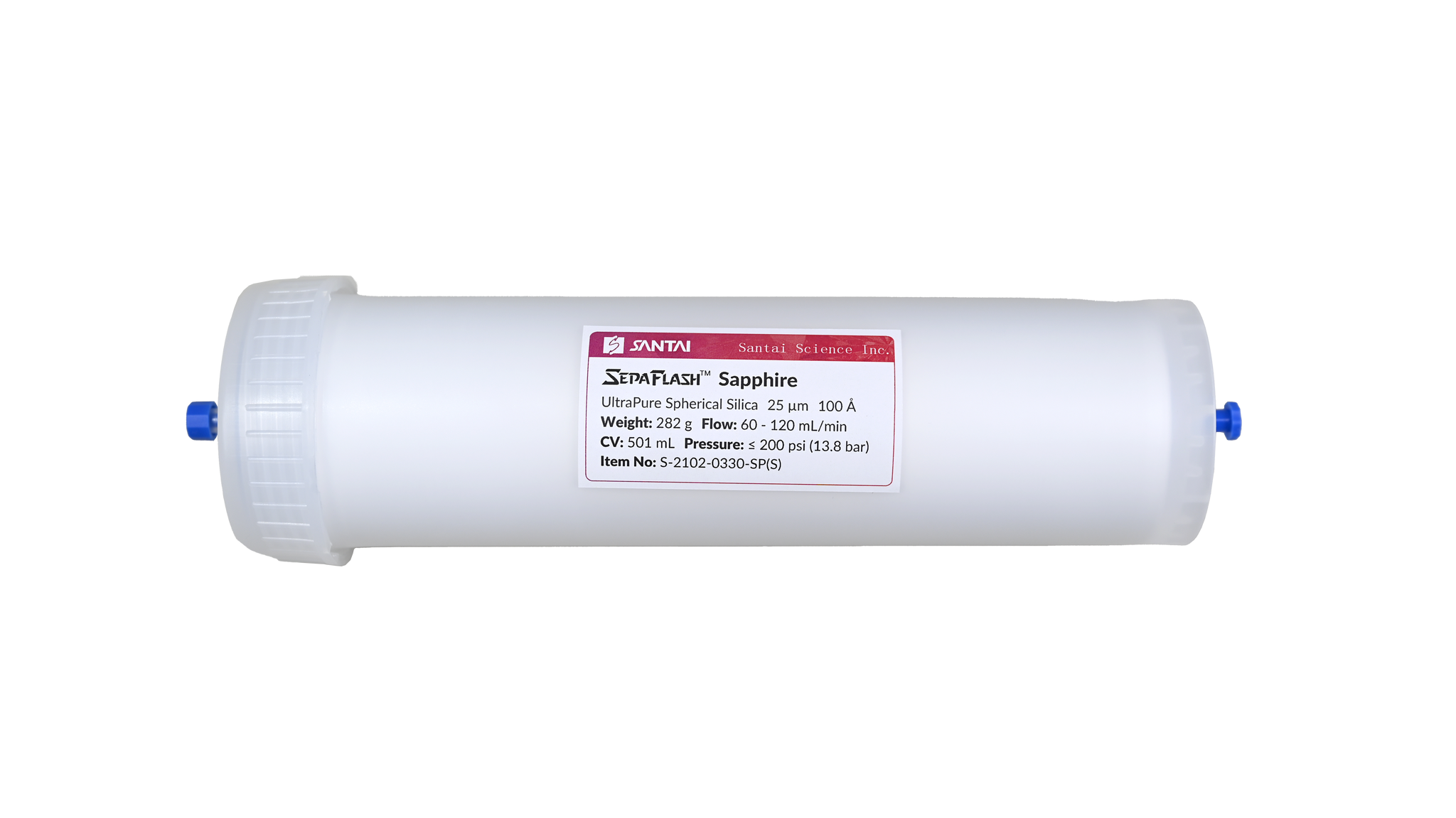

SepaFlash Column HP Sapphire Series Spin-welded column High-efficiency spherical silica SW-2102-SP(S) 4g, 12g, 25g, 40g, 80g, 120g, 220g, 330g
Ordering Information
HP Sapphire Series (Spin-welded column format)
High-capacity spherical silica gel 25 μm, 100 Å, surface area 450 ㎡/g, pH 5.0-8.0
| Item No. | Column Size | Sample Size | Flow Rate (ml/min) |
Cartridge Length (mm) |
Cartridge ID (mm) |
Max pressure (psi/bar) |
| SW-2102-004-SP (S) | 4 g | 4 mg–1.2 g | 15–30 | 113.8 | 12.4 | 400/27.5 |
| SW-2102-012-SP (S) | 12 g | 12 mg–3.6 g | 25–50 | 134.8 | 21.4 | 400/27.5 |
| SW-2102-025-SP (S) | 25 g | 25 mg–7.5 g | 25–50 | 184 | 21.4 | 400/27.5 |
| SW-2102-040-SP (S) | 40 g | 40 mg–12 g | 30–60 | 184.4 | 26.7 | 400/27.5 |
| SW-2102-080-SP (S) | 80 g | 80 mg–24 g | 40–80 | 257.4 | 31.2 | 350/24.0 |
| SW-2102-120-SP (S) | 120 g | 120 mg–36 g | 45–90 | 261.5 | 38.6 | 300/20.7 |
| SW-2102-220-SP (S) | 220 g | 220 mg–66 g | 60–120 | 223.5 | 61.4 | 300/20.7 |
| SW-2102-330-SP (S) | 330 g | 330 mg–99 g | 60–120 | 280.2 | 61.4 | 250/17.2 |
